Fat16 Functions. More...

#include "types.h"
#include "uart.h"

Include dependency graph for avrfat16.h:

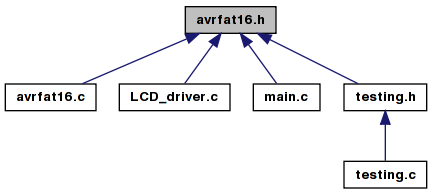

This graph shows which files directly or indirectly include this file:

Defines
#define	PARTITION_START 446
	Start address of partition 1 in MBR.
#define	FILE_ATTR_READ_ONLY 0x01
#define	FILE_ATTR_HIDDEN 0x02
#define	FILE_ATTR_SYSTEM 0x04
#define	FILE_ATTR_SYSHID 0x06
#define	FILE_ATTR_VOLUME_ID 0x08
#define	FILE_ATTR_DIRECTORY 0x10
#define	FILE_ATTR_ARCHIVE 0x20
#define	FILE_ATTR_LFN_TEXT 0x0F
#define	FILE_ATTR_LFN_MASK 0x3F
#define	FILE_HEADER_BLANK 0x00
#define	FILE_HEADER_DELETED 0xE5
#define	FILE_TYPE_DIR 0x10
#define	FILE_TYPE_FILE 0x20
#define	FILE_TYPE_MP3 0x55
#define	FAT16_LDIR_Ord 0
#define	FAT16_LDIR_Name1 1
#define	FAT16_LDIR_Attr 11
#define	FAT16_LDIR_Type 12
#define	FAT16_LDIR_Chksum 13
#define	FAT16_LDIR_Name2 14
#define	FAT16_LDIR_FstClusLO 26
#define	FAT16_LDIR_Name3 28
#define	LFN_TYPE_INDEX 208
#define	LFN_TYPE_FILENAME 0x00
	No bits set.
#define	LFN_TYPE_ID3_TITLE 0x01
	Bit 0.
#define	LFN_TYPE_ID3_ARTIST 0x02
	Bit 1.
#define	LFN_BUFFER_LENGTH 208
#define	LFN_TITLE_INDEX 0
#define	LFN_TITLE_LENGTH 100
	Title length including '\0'.
#define	LFN_ARTIST_INDEX 100
#define	LFN_ARTIST_LENGTH 100
	Artist length including '\0'.
#define	LFN_FREE_INDEX 200
#define	LFN_FREE_LEN 8
	Currently 8 free bytes in buffer if using ID3 tags not filenames.
Functions
uint8	FAT_initFat16 (void)
	read MBR and bootsector and set fat variables
uint8	FAT_readCluster (uint32 cluster, uint8 sector_offset)
	read a sector from a cluster
uint32	FAT_NextCluster (uint32 cluster)
	FAT_NextCluster.
uint32	FAT_getNextSong (uint32 filenumber, uint32 dir_lba)
	FAT_readRoot.
uint32	FAT_getPrevSong (uint32 filenumber, uint32 dir_lba)
	GetPrevSong.
uint32	FAT_getNumberedSong (char songNumber, uint32 dir_lba)
	GetNumberedSong.
uint8	FAT_ChkSum (uint8 *pFcbName)
	FAT_ChkSum()
uint8	FAT_readFile (uint32 filenumber, uint32 dir_first_sector)
	FAT_readRoot.
uint8	FAT_scanDir (uint32 directory_cluster)
	FAT_scanDir.
uint8	FAT_scanDir_lba (uint32 lba_addr)
	FAT_scanDir_lba.
uint32	FAT_cluster2lba (uint32 cluster)
	FAT_cluster2lba.
uint32	FAT_lba2cluster (uint32 lba_addr)
	FAT_lba2cluster.
uint32	FAT_getParentDir (uint32 lba_addr)
	FAT_getParentDir.
void	FAT_Scratch2Cluster (void)
	FAT_Scratch2Cluster.
Variables
uint32	FAT16_fat_begin_lba
uint32	FAT16_cluster_begin_lba
uint8	FAT16_sectors_per_cluster
uint32	FAT16_dir_first_sector
uint32	FAT16_root_dir_first_sector
uint32	FAT16_parent_dir_first_sector
uint8	FAT16_filetype
uint8	FAT16_longfilename [208+1]
	buffer for long filenames / ID3 tags
uint8	FAT16_LFNTitleLen
uint8	FAT16_LFNArtistLen
uint16	FAT16_entryMAX
	Maximum entry number in FAT table. (aka file number)
uint16	FAT16_entryMIN
	Minimum entry number in FAT table. (aka file number)
uint8 *	FAT_buffer
	512 byte buffer for sector reads/writes
uint8 *	FAT_scratch
	32 byte buffer for filenames and data
uint8(*	FAT_read )(uint32 lba)
	pointer to read block function
uint8(*	FAT_write )(uint32 lba)
	pointer to write block function

Detailed Description

Fat16 Functions.

Author:: Nick Lott

Date:: September 2004

Id:: avrfat16.h,v 1.20 2009/01/10 23:16:08 brokentoaster Exp

This is a simple implementation of the FAT16 file system. It is designed to be small for use with MP3 players and MMC cards. Currently it is readonly.NOTE: The code acknowledges only the first partition on the drive.

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

Target(s)...: ATmega169

Compiler....: AVR-GCC 3.3.1; avr-libc 1.0

Definition in file avrfat16.h.

Define Documentation

#define FAT16_LDIR_Attr 11

Definition at line 60 of file avrfat16.h.

Referenced by FAT_readFile().

#define FAT16_LDIR_Chksum 13

Definition at line 62 of file avrfat16.h.

Referenced by FAT_readFile().

#define FAT16_LDIR_FstClusLO 26

Definition at line 64 of file avrfat16.h.

#define FAT16_LDIR_Name1 1

Definition at line 59 of file avrfat16.h.

#define FAT16_LDIR_Name2 14

Definition at line 63 of file avrfat16.h.

#define FAT16_LDIR_Name3 28

Definition at line 65 of file avrfat16.h.

#define FAT16_LDIR_Ord 0

Definition at line 58 of file avrfat16.h.

Referenced by FAT_readFile().

#define FAT16_LDIR_Type 12

Definition at line 61 of file avrfat16.h.

#define FILE_ATTR_ARCHIVE 0x20

Definition at line 50 of file avrfat16.h.

Referenced by FAT_readFile().

#define FILE_ATTR_DIRECTORY 0x10

Definition at line 49 of file avrfat16.h.

Referenced by FAT_readFile().

#define FILE_ATTR_HIDDEN 0x02

Definition at line 45 of file avrfat16.h.

Referenced by FAT_readFile().

#define FILE_ATTR_LFN_MASK 0x3F

Definition at line 52 of file avrfat16.h.

Referenced by FAT_readFile().

#define FILE_ATTR_LFN_TEXT 0x0F

Definition at line 51 of file avrfat16.h.

Referenced by FAT_readFile().

#define FILE_ATTR_READ_ONLY 0x01

Definition at line 44 of file avrfat16.h.

#define FILE_ATTR_SYSHID 0x06

Definition at line 47 of file avrfat16.h.

#define FILE_ATTR_SYSTEM 0x04

Definition at line 46 of file avrfat16.h.

#define FILE_ATTR_VOLUME_ID 0x08

Definition at line 48 of file avrfat16.h.

#define FILE_HEADER_BLANK 0x00

Definition at line 53 of file avrfat16.h.

#define FILE_HEADER_DELETED 0xE5

Definition at line 54 of file avrfat16.h.

#define FILE_TYPE_DIR 0x10

Definition at line 55 of file avrfat16.h.

Referenced by cue_file(), FAT_readFile(), FAT_tester(), handle_interface(), and streaming().

#define FILE_TYPE_FILE 0x20

Definition at line 56 of file avrfat16.h.

Referenced by FAT_readFile(), and FAT_tester().

#define FILE_TYPE_MP3 0x55

Definition at line 57 of file avrfat16.h.

#define LFN_ARTIST_INDEX 100

Definition at line 75 of file avrfat16.h.

Referenced by cue_file().

#define LFN_ARTIST_LENGTH 100

Artist length including '\0'.

Definition at line 76 of file avrfat16.h.

Referenced by cue_file().

#define LFN_BUFFER_LENGTH 208

Definition at line 72 of file avrfat16.h.

Referenced by FAT_readFile().

#define LFN_FREE_INDEX 200

Definition at line 77 of file avrfat16.h.

#define LFN_FREE_LEN 8

Currently 8 free bytes in buffer if using ID3 tags not filenames.

Definition at line 78 of file avrfat16.h.

#define LFN_TITLE_INDEX 0

Definition at line 73 of file avrfat16.h.

Referenced by cue_file().

#define LFN_TITLE_LENGTH 100

Title length including '\0'.

Definition at line 74 of file avrfat16.h.

Referenced by cue_file().

#define LFN_TYPE_FILENAME 0x00

No bits set.

Definition at line 69 of file avrfat16.h.

Referenced by FAT_readFile().

#define LFN_TYPE_ID3_ARTIST 0x02

Bit 1.

Definition at line 71 of file avrfat16.h.

Referenced by cue_file().

#define LFN_TYPE_ID3_TITLE 0x01

Bit 0.

Definition at line 70 of file avrfat16.h.

Referenced by cue_file().

#define LFN_TYPE_INDEX 208

Definition at line 68 of file avrfat16.h.

Referenced by cue_file(), and FAT_readFile().

#define PARTITION_START 446

Start address of partition 1 in MBR.

Definition at line 39 of file avrfat16.h.

Referenced by FAT_initFat16().

Function Documentation

uint8 FAT_ChkSum ( uint8 * pFcbName )

FAT_ChkSum()

Returns an unsigned byte check sum computed on an unsignedbyte array. The array must be 11 bytes long and is assumed to contain a name stored in the format of a MS-DOS directory entry.

Parameters:

pFcbName Pointer to an unsigned byte array assumed to be 11 bytes long. An 8-bit unsigned checksum of the array pointed to by pFcbName.

Definition at line 748 of file avrfat16.c.

Referenced by FAT_readFile().

uint32 FAT_cluster2lba ( uint32 cluster )

FAT_cluster2lba.

Calculate the sector address of a cluster.

Parameters:

uint32 pointing to cluster

Returns:: lba of first sector in cluster

Definition at line 786 of file avrfat16.c.

References FAT16_cluster_begin_lba, and FAT16_sectors_per_cluster.

Referenced by FAT_getParentDir(), FAT_readFile(), and handle_interface().

uint32 FAT_getNextSong	(	uint32	filenumber,
		uint32	dir_lba
	)

FAT_readRoot.

Read the root directory of the disk and obtain details about FAT entry number <filenumber>

Parameters:

filenumber 32bit uInt pointing to file of interst.

Returns:: error code GetNextSong

Parameters:

filenumber	uint32 index of current file in directory
dir_lba	uint32 lba of directory to search

Returns:: new filenumber or 0=err

Definition at line 627 of file avrfat16.c.

References FAT16_entryMAX, and FAT_readFile().

Referenced by FAT_scanDir_lba(), handle_interface(), restore_player(), and streaming().

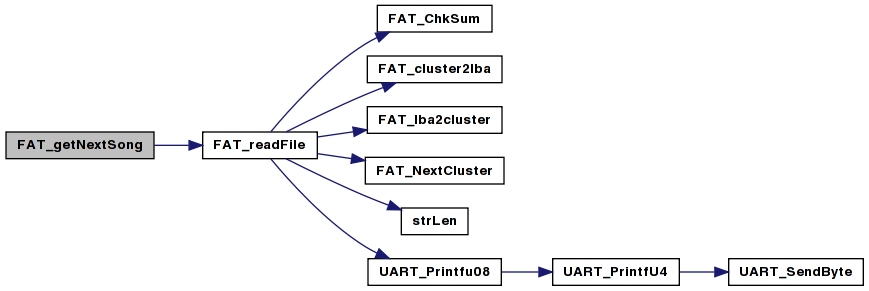

Here is the call graph for this function:

uint32 FAT_getNumberedSong	(	char	songNumber,
		uint32	dir_lba
	)

GetNumberedSong.

Get the file number of a song given a 2 digit BCD of the first two digits of the filename. eg given CHAR2BCD(8) as an argument the function will find the first file in the current directory whos name begins with "08" and ends with ".mp3"

Parameters:

songNumber	char a BCD number 00 - 99 of song/sample
dir_lba	uint32 lba of directory to search

Returns:: new filenumber or 0=err

Get the file number of a song given a 2 digit BCD of the first two digits of the filename. eg given CHAR2BCD(8) as an argument the function will find the first file in the current directory whos name begins with "08" and ends with ".mp3". Can be removed from code by setting FAT_NumberedSong_EN to 0.

Parameters:

songNumber	char a BCD number 00 - 99 of song/sample
dir_lba	uint32 lba of directory to search

Returns:: new filenumber or 0=err

Definition at line 697 of file avrfat16.c.

References EOL, FAT16_entryMAX, FAT16_entryMIN, FAT16_longfilename, FAT_readFile(), PRINT, UART_Printfu08(), and UART_Puts().

Referenced by play_track_number().

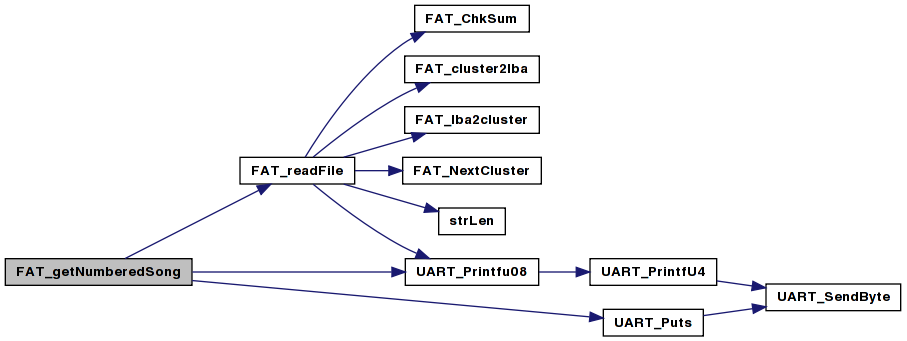

Here is the call graph for this function:

uint32 FAT_getParentDir ( uint32 lba_addr )

FAT_getParentDir.

Parameters:

lba_addr uint32 pointing to current directory starting sector

Returns:: first sector of the parent directory or 0 for error

return the first sector of the .. entry. assuming it is the second entry in the directory file. otherwise return 0 to do nothing.

Definition at line 867 of file avrfat16.c.

References FAT16_root_dir_first_sector, FAT_buffer, FAT_cluster2lba(), and FAT_read.

Referenced by handle_interface().

Here is the call graph for this function:

uint32 FAT_getPrevSong	(	uint32	filenumber,
		uint32	dir_lba
	)

GetPrevSong.

Parameters:

filenumber	uint32 index of current file in directory
dir_lba	uint32 lba of directory to search

Returns:: file number of next file or zero if none found.

Definition at line 660 of file avrfat16.c.

References FAT16_entryMIN, and FAT_readFile().

Referenced by handle_interface().

Here is the call graph for this function:

uint8 FAT_initFat16 ( void )

read MBR and bootsector and set fat variables

read MBR and bootsector and set global fat variables

Returns:: non zero for error.

Definition at line 84 of file avrfat16.c.

References EOL, FAT16_cluster_begin_lba, FAT16_dir_first_sector, FAT16_fat_begin_lba, FAT16_parent_dir_first_sector, FAT16_root_dir_first_sector, FAT16_sectors_per_cluster, FAT_buffer, FAT_read, PARTITION_START, PRINT, UART_Printfu08(), and UART_Printfu16().

Referenced by FAT_tester(), and init_mmc_fat().

Here is the call graph for this function:

uint32 FAT_lba2cluster ( uint32 lba_addr )

FAT_lba2cluster.

Calculate the cluster address of a sector.

Parameters:

lba_addr uint32 pointing to lba in cluster

Returns:: cluster containing lba

Calculate the cluster address of a sector.

Parameters:

lba_addr uint32 pointing to lba_addr in cluster

Returns:: cluster containing the lba_addr

Definition at line 805 of file avrfat16.c.

References FAT16_cluster_begin_lba, and FAT16_sectors_per_cluster.

Referenced by FAT_readFile().

uint32 FAT_NextCluster ( uint32 cluster )

FAT_NextCluster.

looks up a cluster in fat

Parameters:

cluster current cluster

Returns:: next cluster; 0 for error; 0xffffff for end of file.

Definition at line 264 of file avrfat16.c.

References FAT16_fat_begin_lba, FAT_buffer, and FAT_read.

Referenced by cue_file(), FAT_readFile(), and streaming().

uint8 FAT_readCluster	(	uint32	cluster,
		uint8	sector_offset
	)

read a sector from a cluster

copys the volume label

Parameters:

destentaion for label

Returns:: non zero for error. FAT_readCluster Reads a sector from a cluster into the buffer

Parameters:

cluster	Clusterto read from
sector_offset	Sector to read from within cluster

Returns:: error code from FAT_read()

Definition at line 241 of file avrfat16.c.

References FAT16_cluster_begin_lba, FAT16_sectors_per_cluster, and FAT_read.

Referenced by cue_file(), and streaming().

uint8 FAT_readFile	(	uint32	filenumber,
		uint32	dir_first_sector
	)

FAT_readRoot.

Read the root directory of the disk and obtain details about FAT entry number filenumber

Parameters:

filenumber 32bit uInt pointing to file of interst.

Returns:: error code FAT_read

Read any directory of the disk and obtain details about FAT entry number filenumber

Parameters:

filenumber	32bit uInt pointing to file of interst.
dir_first_entry	32bit uInt pointing to first cluster of directory

Returns:: error code

FAT_readRoot.

Read any directory of the disk and obtain details about FAT entry number filenumber

error codes:
0x00 mp3file found
0x02 end of directory
0x59 deleted file

Parameters:

filenumber	32bit uInt pointing to file of interst.
dir_first_sector	32bit uInt pointing to first cluster of directory

Returns:: error code

Definition at line 322 of file avrfat16.c.

References EOL, FAT16_entryMAX, FAT16_filetype, FAT16_LDIR_Attr, FAT16_LDIR_Chksum, FAT16_LDIR_Ord, FAT16_LFNTitleLen, FAT16_longfilename, FAT16_root_dir_first_sector, FAT16_sectors_per_cluster, FAT_buffer, FAT_ChkSum(), FAT_cluster2lba(), FAT_lba2cluster(), FAT_NextCluster(), FAT_read, FAT_scratch, FILE_ATTR_ARCHIVE, FILE_ATTR_DIRECTORY, FILE_ATTR_HIDDEN, FILE_ATTR_LFN_MASK, FILE_ATTR_LFN_TEXT, FILE_TYPE_DIR, FILE_TYPE_FILE, FLG_ROOTDIR, LFN_BUFFER_LENGTH, LFN_TYPE_FILENAME, LFN_TYPE_INDEX, PRINT, strLen(), and UART_Printfu08().

Referenced by cue_file(), FAT_getNextSong(), FAT_getNumberedSong(), FAT_getPrevSong(), and handle_interface().

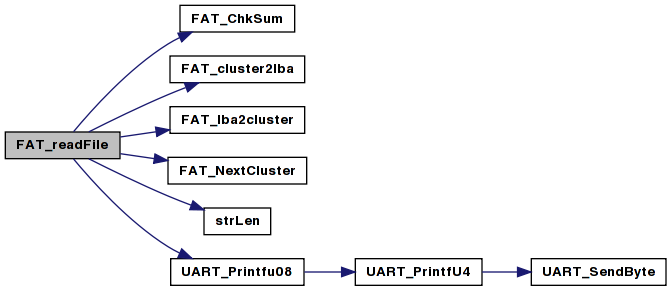

Here is the call graph for this function:

uint8 FAT_scanDir ( uint32 directory_cluster )

FAT_scanDir.

scan a directory for songs, set max, min and currentdir variables

Parameters:

directory_cluster uint32 pointing to director start cluster

Returns:: number of files found (up to 255)

uint8 FAT_scanDir_lba ( uint32 lba_addr )

FAT_scanDir_lba.

scan a directory for songs, set max, min and currentdir variables

Parameters:

lba_addr uint32 pointing to director starting sector

Returns:: number of files found (up to 255)

scan a directory for songs, set max, min and currentdir variables

Parameters:

lba_addr uint32 pointing to directory starting sector

Returns:: number of files found (up to 255)

Definition at line 823 of file avrfat16.c.

References FAT16_dir_first_sector, FAT16_entryMAX, FAT16_entryMIN, FAT16_parent_dir_first_sector, and FAT_getNextSong().

Referenced by open_Dir().

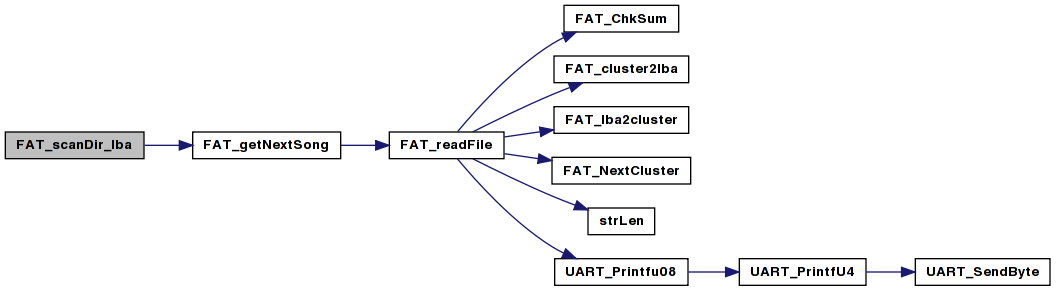

Here is the call graph for this function:

void FAT_Scratch2Cluster ( void )

FAT_Scratch2Cluster.

Extracts the first cluster from the scratchpad buffer left after the most recent FAT_readFile() call

Extracts the first cluster from the scratchpad buffer left after the most recent call of FAT_readFile()

Definition at line 935 of file avrfat16.c.

References FAT_scratch, and gCluster.

Referenced by cue_file(), and handle_interface().

Variable Documentation

uint32 FAT16_cluster_begin_lba

Definition at line 82 of file avrfat16.h.

Referenced by FAT_cluster2lba(), FAT_initFat16(), FAT_lba2cluster(), FAT_readCluster(), and FAT_tester().

uint32 FAT16_dir_first_sector

Definition at line 84 of file avrfat16.h.

Referenced by cue_file(), FAT_initFat16(), FAT_scanDir_lba(), handle_interface(), play_track_number(), save_player_state(), and streaming().

uint16 FAT16_entryMAX

Maximum entry number in FAT table. (aka file number)

Definition at line 92 of file avrfat16.h.

Referenced by FAT_getNextSong(), FAT_getNumberedSong(), FAT_readFile(), FAT_scanDir_lba(), handle_interface(), handle_mmc(), init_HW(), and init_mmc_fat().

uint16 FAT16_entryMIN

Minimum entry number in FAT table. (aka file number)

Definition at line 93 of file avrfat16.h.

Referenced by FAT_getNumberedSong(), FAT_getPrevSong(), FAT_scanDir_lba(), handle_interface(), handle_mmc(), init_HW(), init_mmc_fat(), open_Dir(), restore_player(), and streaming().

uint32 FAT16_fat_begin_lba

Definition at line 81 of file avrfat16.h.

Referenced by FAT_initFat16(), FAT_NextCluster(), and FAT_tester().

uint8 FAT16_filetype

Definition at line 88 of file avrfat16.h.

Referenced by cue_file(), FAT_readFile(), handle_interface(), and streaming().

uint8 FAT16_LFNArtistLen

Definition at line 91 of file avrfat16.h.

Referenced by cue_file().

uint8 FAT16_LFNTitleLen

Definition at line 90 of file avrfat16.h.

Referenced by cue_file(), and FAT_readFile().

uint8 FAT16_longfilename[208+1]

buffer for long filenames / ID3 tags

Definition at line 89 of file avrfat16.h.

Referenced by cue_file(), FAT_getNumberedSong(), FAT_readFile(), and SIGNAL().

uint32 FAT16_parent_dir_first_sector

Definition at line 86 of file avrfat16.h.

Referenced by FAT_initFat16(), and FAT_scanDir_lba().

uint32 FAT16_root_dir_first_sector

Definition at line 85 of file avrfat16.h.

Referenced by FAT_getParentDir(), FAT_initFat16(), FAT_readFile(), FAT_tester(), and init_mmc_fat().

uint8 FAT16_sectors_per_cluster

Definition at line 83 of file avrfat16.h.

Referenced by cue_file(), FAT_cluster2lba(), FAT_initFat16(), FAT_lba2cluster(), FAT_readCluster(), FAT_readFile(), FAT_tester(), and streaming().

uint8* FAT_buffer

512 byte buffer for sector reads/writes

Definition at line 95 of file avrfat16.h.

Referenced by cue_file(), FAT_getParentDir(), FAT_initFat16(), FAT_NextCluster(), FAT_readFile(), FAT_tester(), init_HW(), and streaming().

uint8(* FAT_read)(uint32 lba)

pointer to read block function

Definition at line 97 of file avrfat16.h.

Referenced by FAT_getParentDir(), FAT_initFat16(), FAT_NextCluster(), FAT_readCluster(), FAT_readFile(), FAT_tester(), and init_HW().

uint8* FAT_scratch

32 byte buffer for filenames and data

Definition at line 96 of file avrfat16.h.

Referenced by cue_file(), FAT_readFile(), FAT_Scratch2Cluster(), and init_HW().

uint8(* FAT_write)(uint32 lba)

pointer to write block function

Definition at line 98 of file avrfat16.h.

Referenced by FAT_tester().

avrfat16.h File Reference

Defines

Functions

Variables

Detailed Description

Define Documentation

Function Documentation

Variable Documentation
